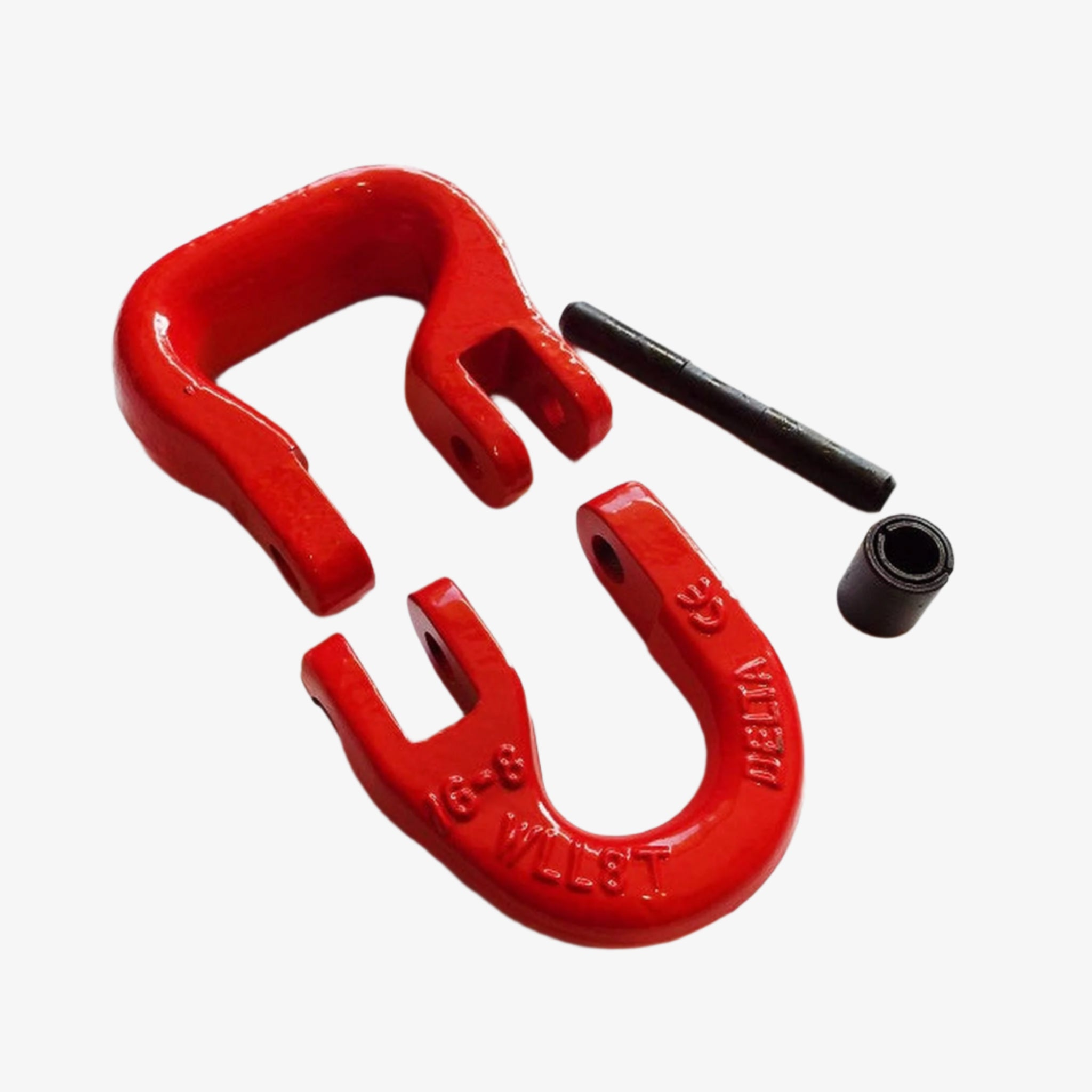

Spojovací člen VG-RS D
Kód | Nosnost | A | B | C | D | E | F | Hmotnost |
--- | t | mm | mm | mm | mm | mm | mm | kg |
YE.8.016.06 | 1,12 | 15 | 60 | 56 | 40 | 18 | 7 | 0,2 |
YE.8.016.08 | 2,00 | 20 | 62 | 64 | 40 | 24 | 10 | 0,3 |
YE.8.016.10 | 3,15 | 24 | 66 | 83 | 39 | 31 | 11 | 0,7 |
YE.8.016.13 | 5,30 | 28 | 88 | 94 | 55 | 37 | 17 | 1,5 |
YE.8.016.16 | 8,00 | 35 | 108 | 120 | 66 | 46 | 20 | 2,3 |
YE.8.016.20 | 12,50 | 41 | 129 | 138 | 80 | 52 | 23 | 3,3 |
YE.8.016.26 | 21,20 | 58 | 229 | 210 | 152 | 86 | 30 | 10,7 |
YE.8.016.32 | 31,50 | 73 | 252 | 279 | 160 | 91 | 55 | 18,9 |
